17″ Monitor: Flanders Scientific CM171
Camera Accessories

17″ Monitor: Flanders Scientific CM171

$200 /day
Get a QuoteOpen in catalog
What’s included
  • Monitor Mount with Baby Pin Receiver
  • OSHA Power Cable
  • SDI Cable (25')
  • Ethernet to USB Cable (3') [optional]
  • 4-Pin XLR (F) to D-Tap (M) Cable
  • Anton Bauer Gold Mount Plate
  • Flanders Scientific Monitor DM170: Screen Protector
  • FSI Solutions CH17 Soft Case with Integrated Hood
  • 750 Baby Roller Stand: 3-Riser [optional]
  • Teradek Bolt 500 XT Kit (1:1) [optional]
  • Teradek Bolt 3000 Kit (1:1) [optional]
About this rental

Lightbulb Rentals offers the 17" Flanders Scientific CM171 3G/Dual-Link/HD/SD-SDI Reference Monitor, designed with comprehensive features ideal for broadcast monitoring and professional video applications.

Specifications
Screen size
17.3 in
Resolution
1920x1080 (Full HD)
Panel
10-bit, full 12-bit video processing
Brightness
250 nits
Backlight
RGB LED
Contrast ratio
1000:1
Viewing angle
178°
Color spaces
Rec.709, SMPTE-C, EBU, DCI-P3 emulation, Native Wide Gamut
Calibration
Color Fidelity Engine CFE2, built-in + 16 DIT 3D LUTs
SDI inputs
2x 3G/Dual-Link/HD/SD-SDI + 2 loop-through outs
Other inputs
DVI-I, Composite, Component
Scopes/tools
waveform, vectorscope, CIE, focus assist, exposure, markers
Power
100–240V AC or 12V DC (4-pin XLR), ~24–28W
Weight
6.4 lb (2.9 kg) without stand
Mount
100mm VESA + rack ears
More like this

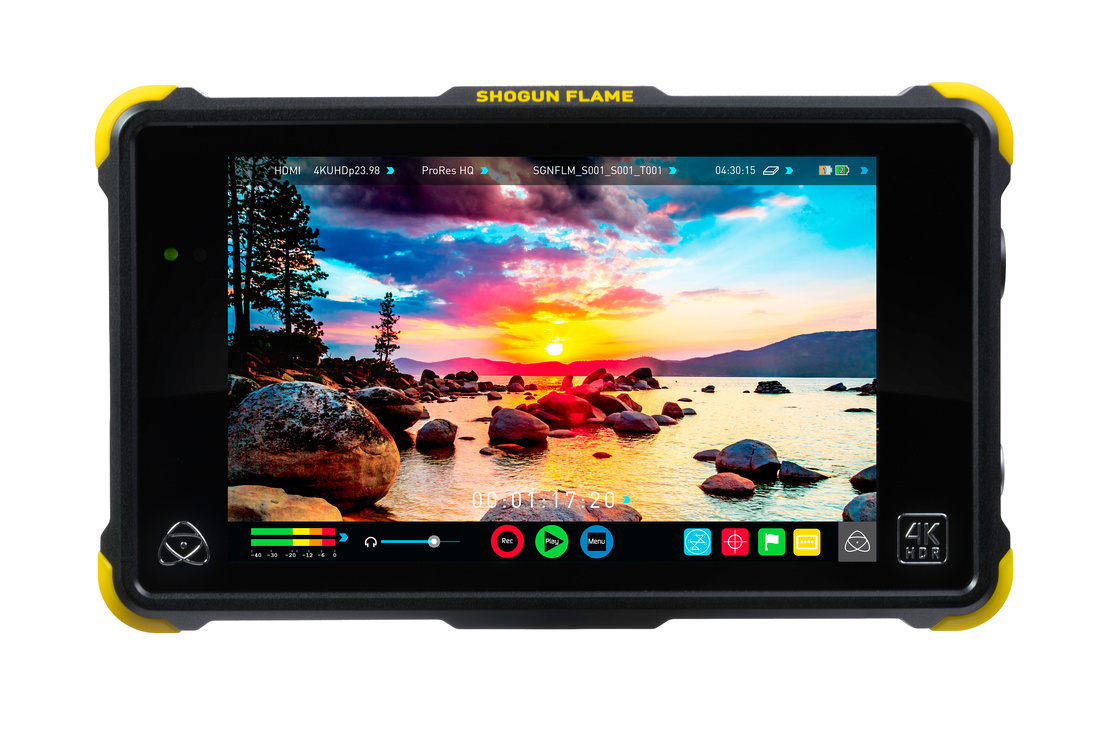

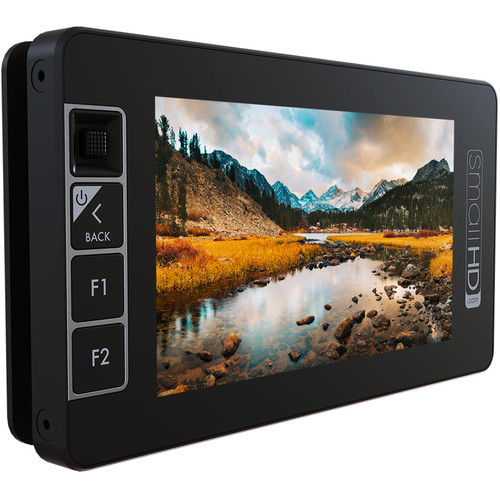

17″ Monitor: SmallHD 1703 P3X 17″ Studio Monitor$250/daySmallHD Monitor Handles and Neckstrap Kit$20/dayCalDigit Element Hub – Thunderbolt 4 and USB 4 Hub$20/dayDECIMATOR MD-QUAD 4-Channel 3G-SDI Multiviewer$30/day18″ Monitor: SmallHD Cine 18 4K High-Bright$250/dayIkan Directors Monitor Cage$10/dayAtomos Shogun Flame 4K Monitor/Recorder$140/day5″ Monitor: SmallHD 503 UltraBright Kit$100/day
